How to Build a DTF Gang Sheet Without Wasting Film
Most DTF shops waste 20–30% of their film on every print run. Here's the step-by-step process to build gang sheets that hit 85%+ coverage and stop costing you money on every job.
Updated April 2026 · 7 min read
If you run a DTF print shop, you already know the feeling: you've got a pile of customer orders, a roll of expensive film loaded up, and you're about to spend the next 30 minutes manually dragging images around in Photoshop trying to fit everything together before you hit print.
Then you print it, pull the sheet, and realize you left a 4-inch gap in the middle that cost you $3 in film. Again.
This is the daily reality for thousands of DTF printers — and it's completely avoidable. Building a proper gang sheet isn't complicated, but it does require a systematic approach. Here's exactly how to do it.
What Is a Gang Sheet, and Why Does It Matter?

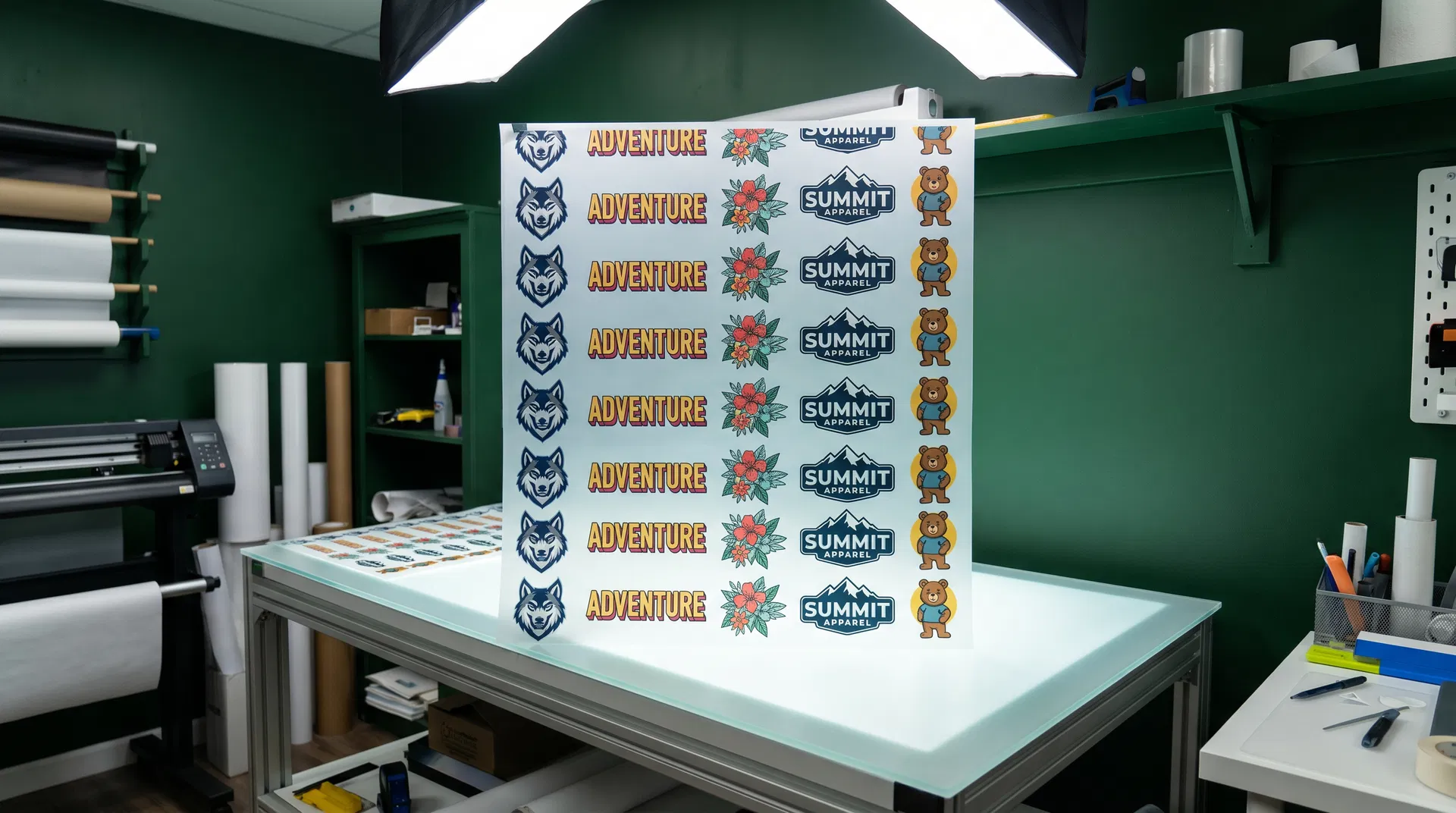

A gang sheet is a single print file that combines multiple designs onto one sheet of DTF film, maximizing coverage and minimizing waste. Done well, a gang sheet can push your film coverage above 85%. Done poorly — or not at all — you're effectively printing air.
DTF film costs anywhere from $0.15 to $0.40 per square foot depending on your supplier and roll size. At 20 sheets per week, a 20% waste rate means you're throwing away $30–80 in film every single week. Over a year, that's $1,500–4,000 in pure waste — before accounting for ink, powder, and labor.
The gang sheet is where that waste is either created or prevented. Everything else — printer settings, ink quality, curing temperature — matters less than how efficiently you've filled your film.
The 6-Step Gang Sheet Build Process
Collect and prepare your artwork files
Start with high-resolution PNG files at 300 DPI or higher. Every image should have a transparent background — no white fills, no halos. If your customer sent a JPG, convert it and remove the background before adding it to the sheet. Low-quality files at this stage compound every problem downstream.
Choose your sheet size based on your printer
Common DTF film widths are 13", 22", 24", 28.9" (Roland), 31.5" (Mimaki), and 35" (Epson). Your sheet length depends on your order volume. A 22×36" sheet is a common starting point for small shops. Larger sheets reduce per-print cost but require more upfront planning.
Sort designs by size before placing
Group large designs together and small designs together. Mixing randomly leads to large gaps that can't be filled. A good rule: place your largest designs first along the top edge, then fill remaining space with smaller designs. This is the core principle behind professional nesting algorithms.
Maintain consistent spacing between designs
Leave at least 0.25" between each design to prevent bleeding and allow clean cutting. Some shops use 0.5" for safety. Don't go smaller than 0.25" — ink bleed during curing can cause designs to merge at the edges.
Target 85%+ film coverage
Professional gang sheets hit 85–92% coverage. Below 75% and you're losing money on every sheet. Track your coverage percentage before printing — if you're under 80%, look for smaller designs to fill gaps or adjust your layout before committing.
Export at 300 DPI in the correct color space
Export as a flattened PNG or TIFF at exactly 300 DPI. Use the sRGB color profile unless your RIP software specifies otherwise. Do not export at 72 or 96 DPI — designs will print blurry and pixelated at press size.
The 5 Most Common Causes of Gang Sheet Waste
| Waste Cause | Fix |
|---|---|
| Random placement without sorting by size | Sort large-to-small before placing |
| Excessive spacing between designs | Use 0.25–0.5" gaps consistently |
| Not filling corner and edge gaps | Keep a library of small filler designs |
| Mismatched sheet size for order volume | Match sheet length to actual order count |
| No coverage check before printing | Target 85%+ before sending to RIP |
Manual Layout vs. Auto-Nesting: What's the Real Difference?
Manual gang sheet building in Photoshop or Illustrator works — but it's slow, inconsistent, and operator-dependent. A skilled operator might hit 82% coverage. A new hire might hit 65%. The variance is the problem.
Auto-nesting software uses bin-packing algorithms to arrange designs in seconds. A good auto-nesting tool consistently hits 88–92% coverage regardless of who's running it. The consistency alone is worth the software cost for any shop running more than 5 sheets per week.
The other advantage is speed. Manual layout for a complex 22×36\" sheet with 30+ designs takes 30–60 minutes. Auto-nesting takes 10–30 seconds. At 20 sheets per week, that's 10+ hours of operator time recovered every week.
